Product Description

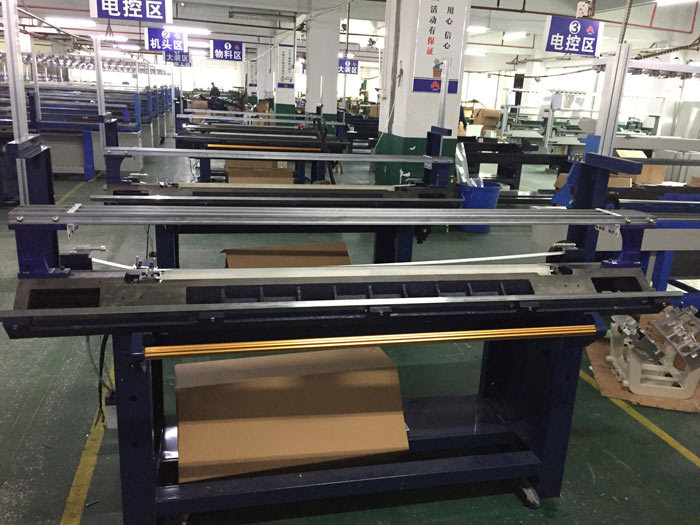

1.     Product Show

      Single carriage with double system computerized flat knitting machine with one high roller, without comb device, uses digital technology to machine knit Transfer, Tuck, Pointell, Intarsia, Jacquard, Apparent Shape, Hidden Shape, and other regular patterns.This machine would be mostly used to automatically knit woolen sweaters. It can fit silk, cotton, woolen, terylene, mix-textile etc to the material.

1)Main Technology Parameters:

A. Gauge: 5GG, 7GG, 9GG, 10GG, 12GG, 14GG, 16GG, multi-gauge.

B. Knitting width: 36 inches, 45 inches, 52 inches, 60 inches, 72 inches.

C. Knitting speed: Controlled by servo motor with 32 sections speed optional, max speed reach 1.2m/s. Servo motor uses the precise back award control and links up the high speed operation ability of digital signal processor (DSP), which controls IGBT to produce accurate output of electric current.

D. Knitting system: Single carriage with double system.

E. Knitting function: Transfer, Tuck, Pointell, Intarsia, Jacquard, Evident Shape, Concealed Shape and other regular or irregular patterns.

F. Needle bed shift: Controlled by servo motor shift within 2 inches and with accurate adjusting function.

G. Detect alarm system: The safety alarm device has up-down and left-right swing functions which surmount the normal flat knitting machine and greatly increases the detect protect function.

H. Encoder: Advanced coder equipped.

I. Transfer function: Triangle composite design can transfer needles from front to back and back to front together.

2)Production Process:

Production processing ----> Machine Adjusting ----> Packaging and Transportation

3.  Knitwear Pattern Show:
Basic patterns such as Plain Stitch, Rib Fabric, Links-and-Links, Interlock Stitch.

     Fancy patterns such as Tuck Stitch, Jacquard, Eyelet Stitch, Aran, Cable, Racked Stitch, Plush Stitch, Pile Stitch, Cord Weave, Bright Narrowing and Enlarging Stitch.
